CNC-V | Catalytic converter shear – with power unit

code cnc-v-catalytic-converter-shear-with-power-unit

Details

Hydraulic cutter with power unit for catalytic converter removal. Designed to securely hold the converter during cutting, ensuring fast and safe disassembly.

Key features:

• opening 90 mm
• High cutting force
• Non-slip handles

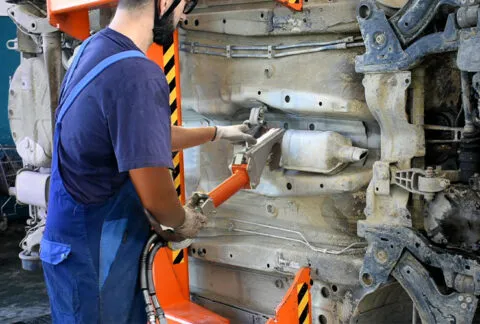

The CNC-V is designed for the fast and safe removal of catalytic converters from end-of-life vehicles. Equipped with a powerful cutter and a 400 V – 50 Hz three-phase power unit, it delivers a cutting force of 51 kN and a pressure of 250 bar, ensuring high performance with reduced energy consumption.

The 6 L oil tank enables extended operation, while the quick-activation switch ensures maximum efficiency. With wheels and 6 m hoses, it is easy to transport and suitable for intensive use.

Benefits:

• Efficiency – high cutting force for fast catalytic converter removal.
• Maximum productivity – continuous operation without interruptions.

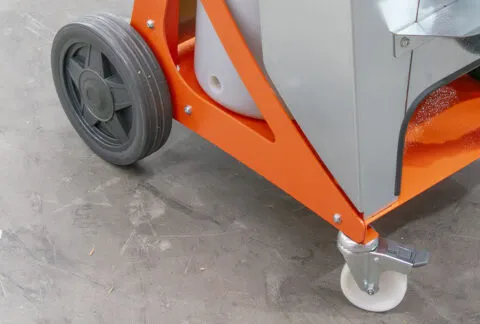

• Practicality – 6 m hoses and swivel wheels for easy positioning.

Technical Specs

CNC-V – 124080400
Power supply		1,1 kW
Voltage		Three-phase – 400 V – 50 Hz
Rated current		2,5 A
Max flow		3 l / min
Max working pressure		250 bar
Oil tank capacity		6 L
Tubes length (cutter connection)		6 m
‘A’ Weighted sound pressure level (LPA)		68 dB
Blade opening	max	90 mm
Cutting force	max	51 kN
Weight		9 Kg

---
