CNT | Junction box for cutters

code cnt-junction-box-for-cutters

Details

Three-phase power unit for multifunctional hydraulic cutters designed for cutting and dismantling vehicle components and parts such as catalytic converters, shock absorbers, engines, bodywork, bumpers, and more.

Key Features:

• Maximum pressure 700 bar
• Dual pump: low energy consumption, high performance
• 15 L oil tank for extended use
• Automatic ON/OFF system
• Connection hoses up to 6 m

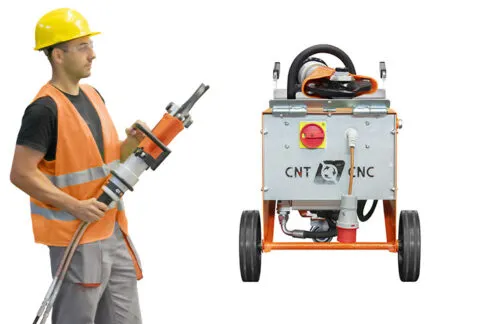

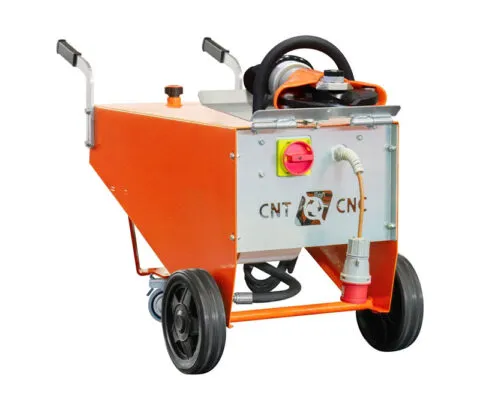

The CNT power unit, designed by Iris-Mec, is a multifunctional hydraulic cutters power unit ensuring effective removal of vehicle parts such as catalytic converters, shock absorbers, engines, and bumpers.

Equipped with a three-phase motor (400 V – 50 Hz) and a high-performance dual pump, it delivers up to 700 bar pressure with low energy consumption. The 15 L oil tank supports a high number of work cycles and ensures high productivity. Featuring an automatic ON/OFF system, wheels, and 6-meter hoses for easy transportation wherever needed.

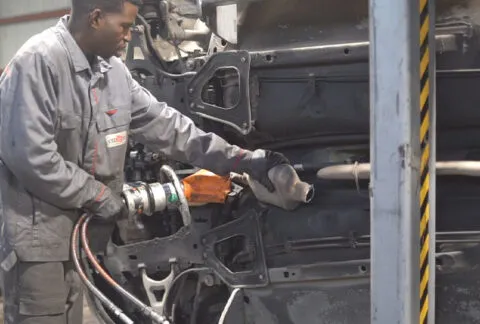

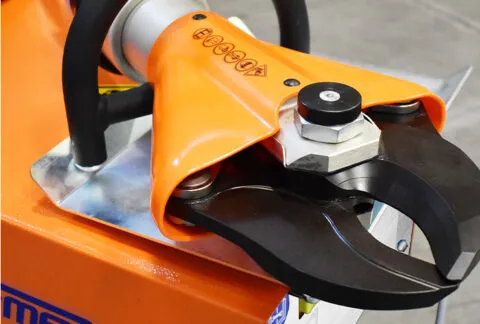

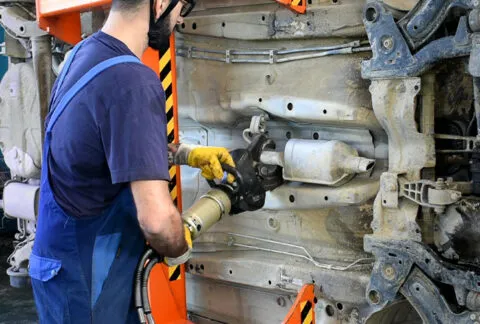

Available cutters include options for various tasks: removing catalytic converters, exhaust pipes, lightweight body parts, wiring, bumpers, dashboards, doors, and tailgates. Paired with the CNT, they offer a perfect solution for car dismantlers and ELV centers.

Advantages and Benefits:

• High efficiency – Up to 700 bar pressure with reduced consumption thanks to the dual pump.
• Maximum productivity – Large 15 L oil tank for extended operations.
• Convenience – Wheels and 6 m hoses for easy positioning.
• Versatility – Ideal for cutting and dismantling multiple vehicle components.

Technical Specs

CNT – 318006
Power supply	max	0,95 kW
Voltage	max	Three-phase – 400 V – 50 Hz
Rated current		2,2 A
1st stage hydraulic circuit – Max flow		3,25 l / min
1st stage hydraulic circui – Max working pressure		160 bar
2nd stage hydraulic circuit – Max flow		0,67 l / min
2nd stage hydraulic circuit – Max working pressure		500 ÷ 700 bar
Oil tank capacity		15 L
Tubes length (cutter connection)	Adjustable by the manufacturer	6 m
‘A’ Weighted sound pressure level (LPA)		68 dB

---
