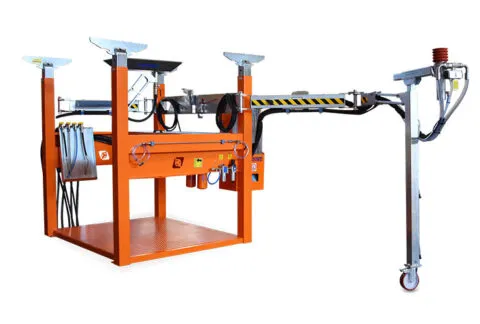

IBQ VS | Compact drainage system with PFT-Strong and Visual

code ibq-vs-compact-drainage-system-with-pft-strong-and-visual

Details

Complete depollution system with a work area of 4m³- 142 ft³ with with Fuel tanks drill with remote controls and Kit for visual inspection of fuel levels.

IBQ VS is equipped with:

• ISQ: Fluids recovery system;
• PFT – Strong: Fuel tanks drill with remote control
• PFA: Shock-absorbers punch
• BRL: Adjustable arm for drainage oil
• Visual: System for monitoring and selecting the quality of fuels.

Thanks to its small size, IBQ-4t can be installed in a minimum working area of 4m3 – 142 ft³.

Optional equipment:

• KPL: Liquid weighing kit with “Industry 4.0” technology;
• AdBlue Kit: Liquid suction equipment;

Technical Specs

IBQ - 4t
Engine oil drainage	50 l/min - 11 UK gal/min Air pump
Shock absorber oil	50 l/min - 11 UK gal/min Air pump
Brakes oil	50 l/min - 11 UK gal/min Air pump
Gear box oil drainage	50 l/min - 11 UK gal/min Air pump
Radiator’s water	50 l/min - 11 UK gal/min Air pump
Windscreen-wiper water	50 l/min - 11 UK gal/min Air pump
Gearbox oil	50 l/min - 11 UK gal/min Air pump
Differential gear oil	50 l/min - 11 UK gal/min Air pump
Petrol	50 l/min - 11 UK gal/min Air pump
Gasoil	50 l/min - 11 UK gal/min Air pump
N° cycle-hour	5 / 8
Max working pressure	6 Bar
Max flow	50 l/min - 11 UK gal/min
Pneumatic console
Puncher Beta air drill 500 w
Max load	4000 Kg - 8818 Lbs
Weight	280 kg - 618 Lbs
Overall dimensions	1500 x 1600 mm h. 1800 mm - 60 x 63 in h. 71 in

IBQ 4t Optionals
Visual Puncher IBQ-V

---
