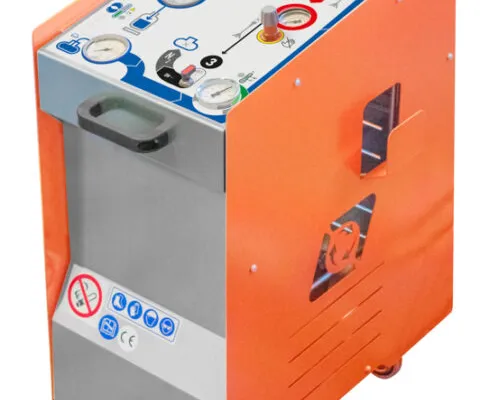

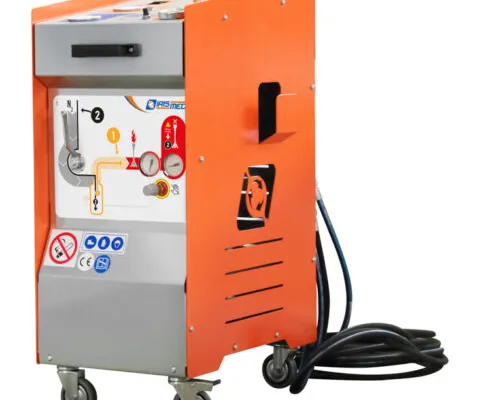

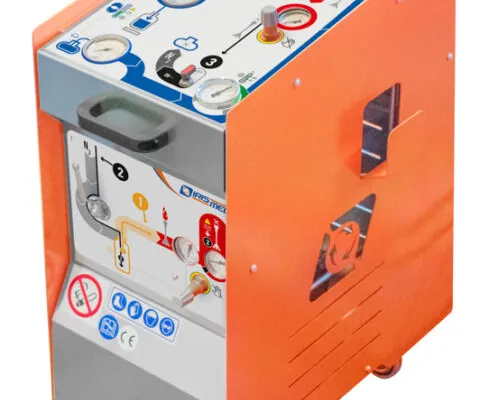

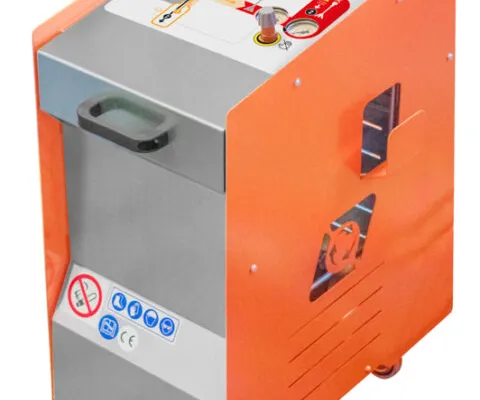

SGR | Residual LPG and Methane recovery unit

code residual-lpg-and-methane-recovery-unit

Details

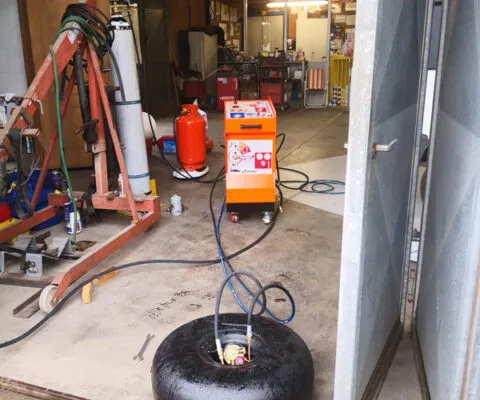

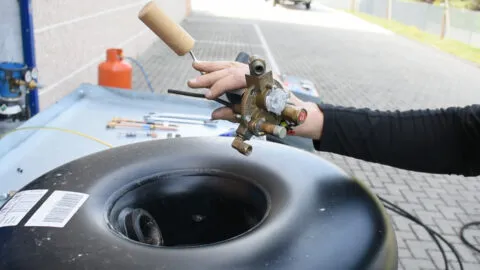

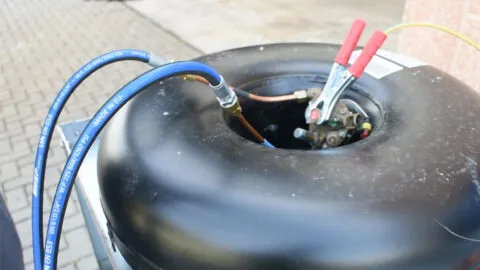

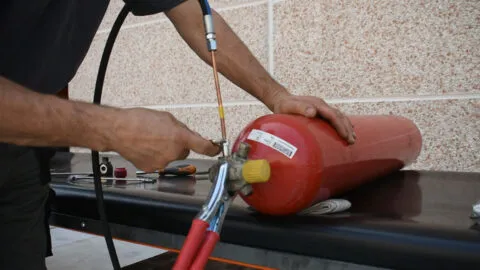

SGR is a system designed for the recovery and disposal of residual LPG and CNG fuels in the tanks of ELV

This equipment is available with a double process:

• The LPG recovery cycle which involves aspiration of the liquid part of the fuel, while the residual gaseous part is sent to the burner;
• The CNG recovery cycle which provides sending the residual gas to the burner;

At the end of each cycle, the tank is washed with nitrogen.

Versions are also available for the exclusive recovery of:

• LPG: SGR G,
• METHAN: SGR M,

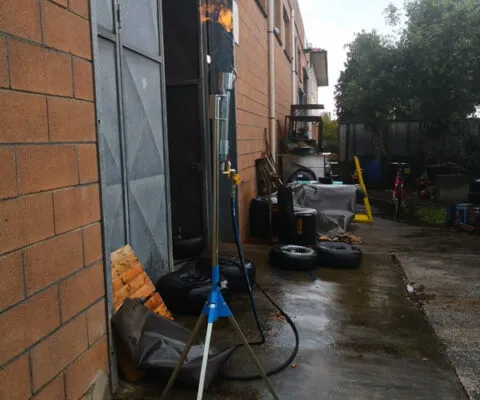

The equipment is complete with a burner for the residual gas.

The New Easygas recovery station complies with the directives 2006 / 42 / CE and 2014 / 34 / UE.

Technical Specs

NEW EASYGAS
Burner’s heat output	90 Kw
Maximum allowed pressure in LPG circuit	bar 15.5
Maximum allowed pressure in methane circuit	bar 200
Inlet pressure of compressed air	bar min 7 / max 12
Maximunm flow rate of LPG transferring (limited by multi-valve of the car)	7 l/min - 1,5 UK gal/min
Inlet rate of compressed air	Nl/min 400
Acoustic emission Lp (A)	dB(A) 50
Weight	60 kg - 133 Lbs
Overall dimensions	50 x 750 mm h. 800 mm - 2 x 30 in h. 32in

---
