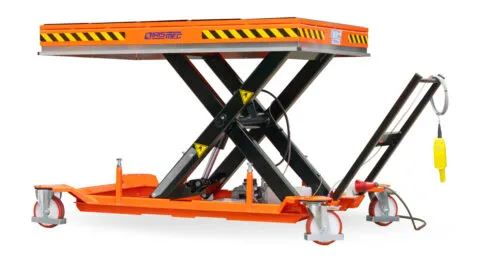

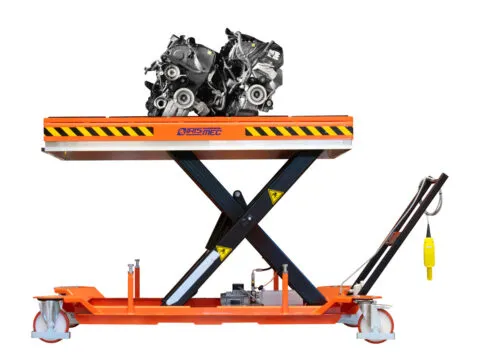

CMM | Lift table for engine disassembly and spare parts

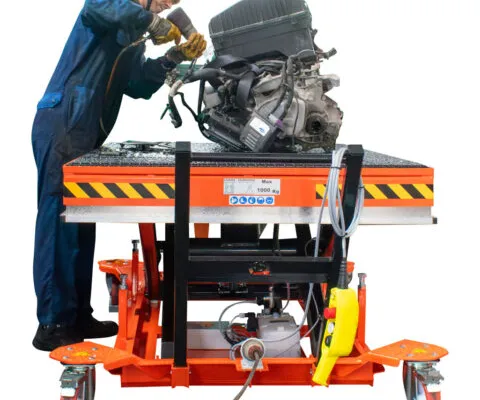

Disassemble engines with ease and recover spare parts effortlessly!

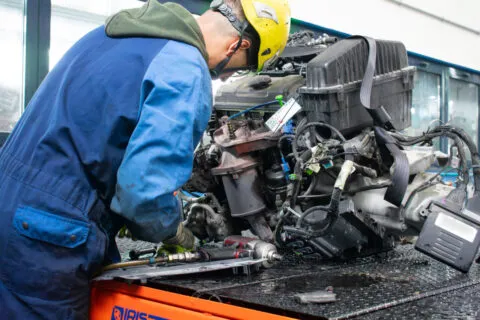

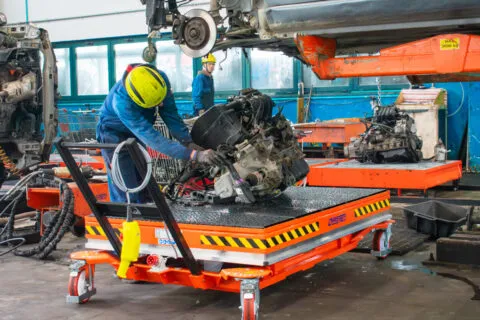

✅ Quick and effortless disassembly of high-quality engines and spare parts

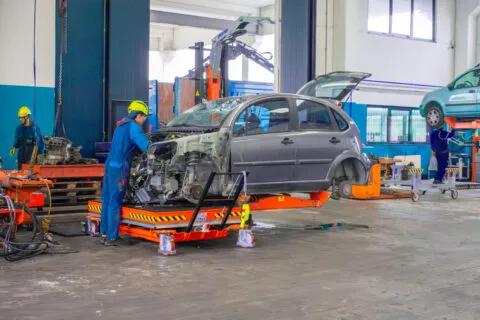

✅ Optimum manoeuvrability in tight spaces
✅ Compatible with Iris-Mec lifts

Technical details

– Lifting capacity up to 1000 kg
– Up/down time: 12” / 18”

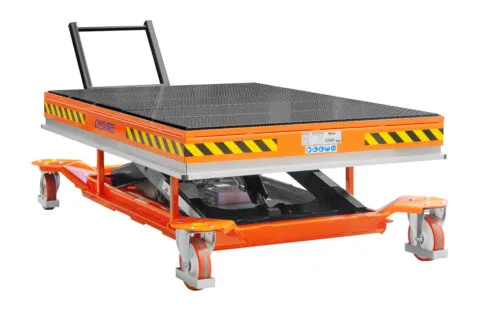

– With wheels for easy handling and movement
– Option without wheels for areas with no need of mobility

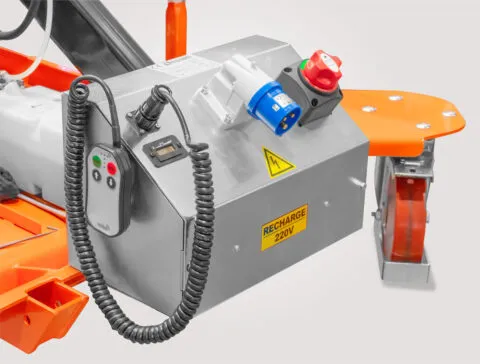

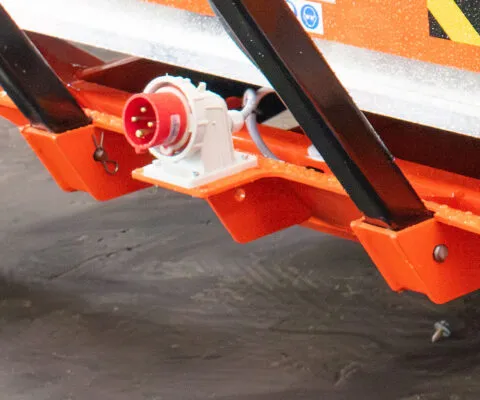

– Option with rechargeable battery or 380 V power supply
– Efficient, remote-controlled lifting system

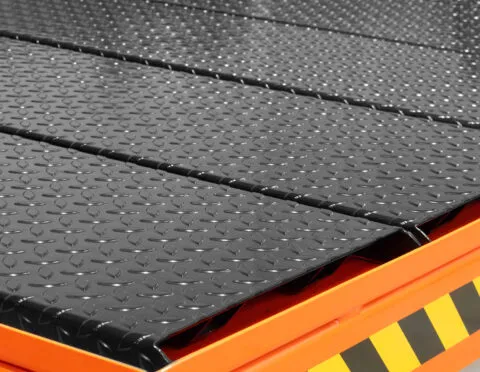

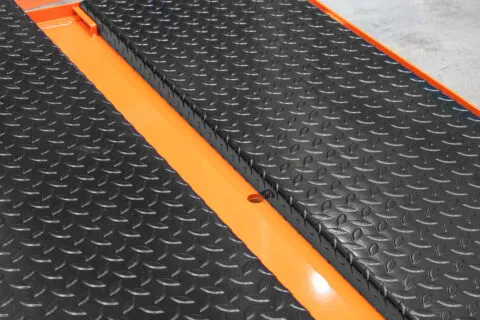

– Scratch-resistant surface for engine protection
– Plan with containment tank and drainage system

Technical Specs

		CMM – 143N80400	CMM-E – 143N80400
Payload	Evenly distributed load – max	1000	1000	Kg
Lifting time		12” – 18”	12” – 18”	sec

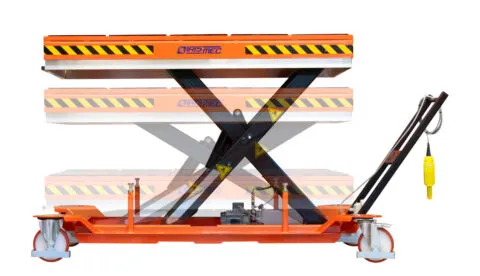

Max lifting height		1200	1200	mm
Max flow		2,4	2,4	l / min
Max working pressure		190	200	bar
Power supply		1.1 kW – 380/400V	–	–
Battery		–	24	V
Battery charging		–	220	V
‘A’ Weighted sound pressure level (LPA)		< 70	< 70	dB
Weight		450	470	Kg

---
