CSB | Auxiliary trolley for disassembly battery packs

code csb-auxiliary-trolley-for-disassembly-battery-packs

Details

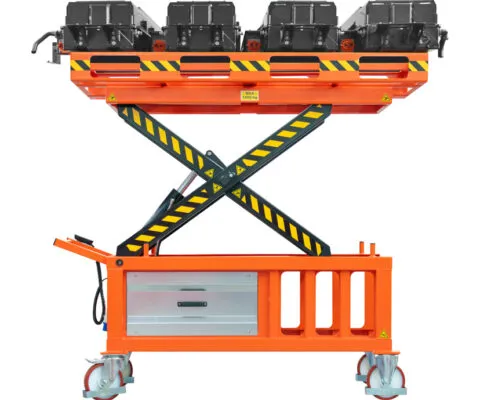

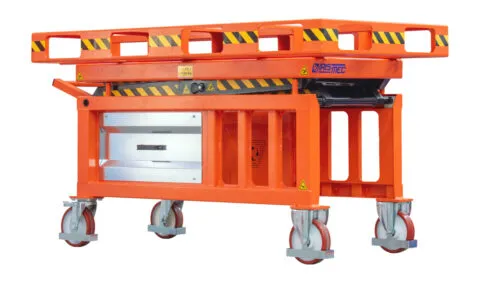

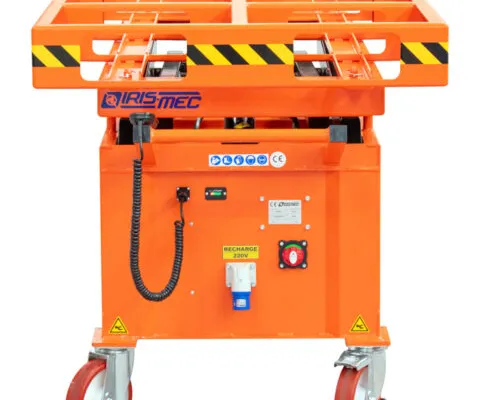

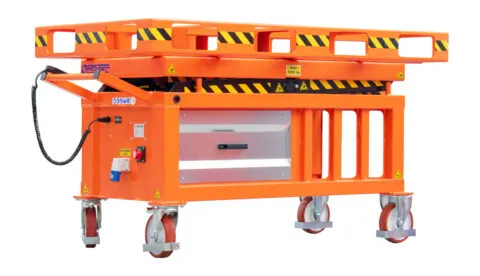

Trolley with elevating platform perfect for any type of intervention or maintenance on traditional vehicles, particularly designed for the removal of battery packs from electric vehicles at the end of life. Platforms available, quickly replaceable, suitable for all battery models and for LPG-CNG tanks, engines, gearboxes and differentials.

✅ Productivity and safety during disassembly;
✅ Perfect for removing battery packs;
✅ Interchangeable platform;
✅ Correct posture and ergonomics for the operator;
✅ Compact, stable and easy to manoeuvre.

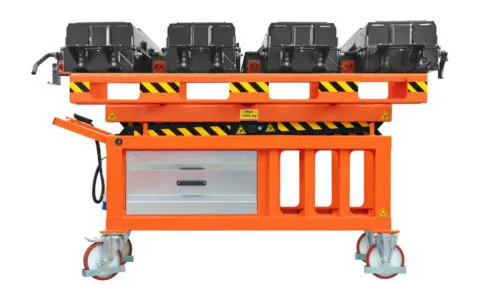

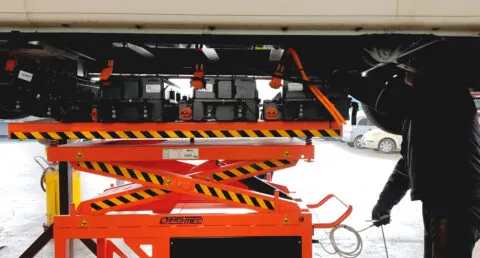

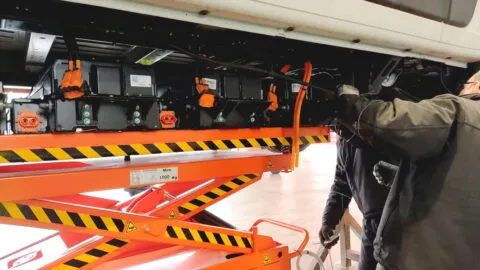

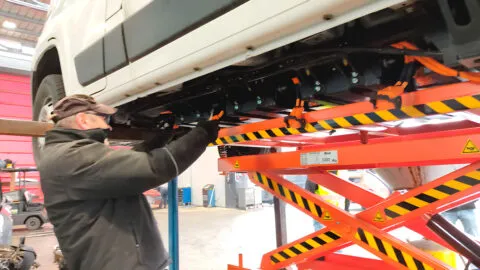

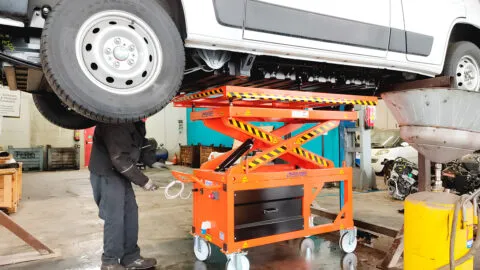

The CSB trolley was designed primarily as a safety device for removing battery packs from electric vehicles at the end of life, a dangerous operation that can only be carried out in authorized structures and by trained personnel. The platform supports the entire weight of the battery block by keeping it aligned during disconnection, once removed and positioned on the top it can be easily moved to the battery disassembly or storage stations.

Adaptable to any area and organization of the work area, it also simplifies the disassembly of engines, LPG and CNG cylinders and all mechanical parts that can be removed from under the car.

An help and constant safety throughout the vehicle disassembly procedure, supporting the weight of the mechanical parts as they are removed, it limits the risk of workplace accidents.

Technical Specs

Payload		1000	Kg
Lifting time		16” – 30”	sec
Max lifting height		2000	mm
Power supply		2.2 kW – 12V
Battery	1 x	12	V

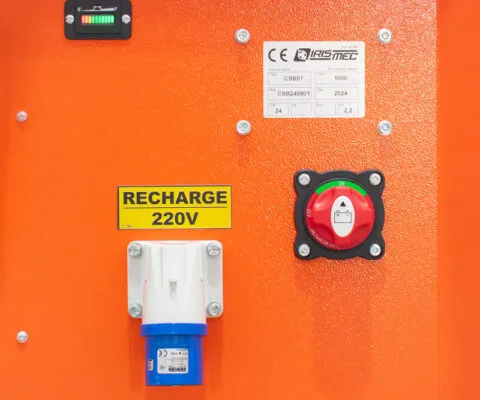

Battery charging		220	V
Alarm		Audible
Weight		430	Kg

---
