CTN-EV | Container for safe and monitored storage of electric vehicle batteries

code ctn-ev-container-for-safe-and-monitored-storage-of-electric-vehicle-batteries

Details

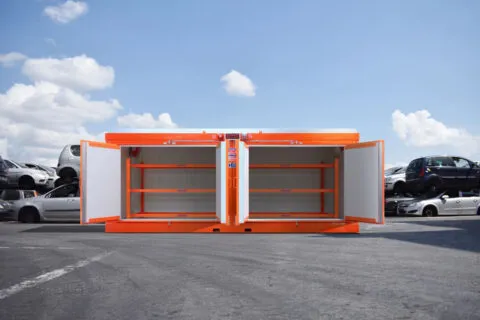

The CTN-EV battery container is the ideal choice to ensure the safety of both critical and non-critical Li-Ion batteries removed from end-of-life electric vehicles. Designed with attention to maximizing safety, the container offers optimal space for storing 6 large batteries with constant monitoring and thermal control.

In case of overheating and smoke presence, the detectors will activate the concentrated aerosol fire suppression system, which neutralizes the electrolyte decomposition process, preventing the formation of flammable gases and reducing the internal temperature. CTN-EV ensures safe storage of Li-Ion batteries and peace of mind thanks to a controlled and secure environment at all times.

What makes our CTN-EV container so safe?

• Fire resistance: safety container with open side and internal insulation REI 90;

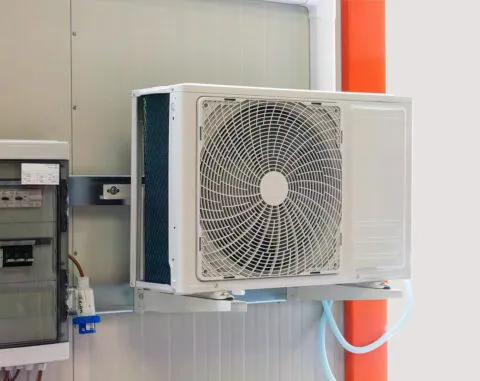

• Monitoring: air conditioning and humidity control system;

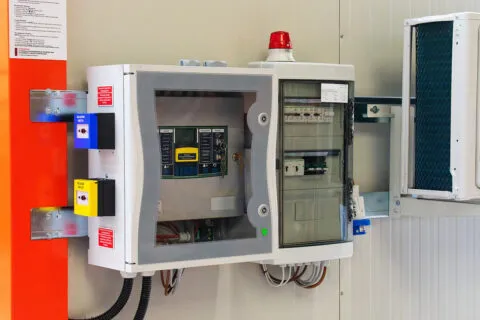

• Prevention: smoke and thermal detectors with rapid fire activation (30 sec.);

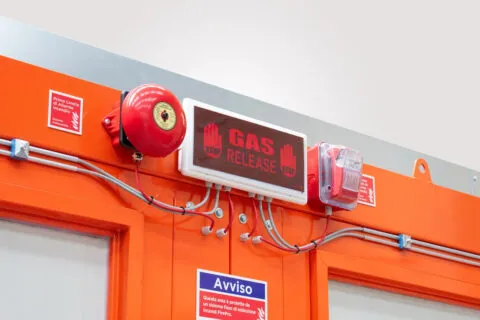

• Safety: concentrated aerosol fire suppression system (KIWA certified);
• Quick access: front opening for immediate access to the batteries when needed;
• Operational efficiency: orderly arrangement of 6 large batteries (2650 x 1650 x 340 mm) to facilitate monitoring and ensure stability during storage.

Technical Specs

CTN EV
External dimensions	Comparable to a 20-foot container	6000 x 2190 x h. 2100	mm
Insulation		EI 90 internal (rock wool panels)
Front opening, doors with fire-resistant seals
Stored batteries		Max 6 (total maximum weight 7000 kg)Máximo 6 (peso total máximo 7000 kg)
Internal shelving		Steel structure with integrated grated shelves
Dimensions 5600x1740x2300
Battery size	max	2650 x 1650 x 340	mm
Floor		EI 90 mm fire resistant
Installations		Air conditioning system (T18-23 °C)
Extinguishing system		Certified KIWA Fireban aerosol

---
