CTS-EV | Box for safe and monitored storage of electric vehicle batteries

code cts-ev-box-for-safe-and-monitored-storage-of-electric-vehicle-batteries

Details

Safety and control for advanced storage of electric vehicle batteries

• Safe storage for critical and non-critical Li-Ion batteries
• 3 separate compartments
• Temperature and smoke monitoring
• Certified aerosol fire suppression system

The CTS-EV battery box is the ideal choice to ensure the safety of both critical and non-critical Li-Ion batteries removed from end-of-life electric vehicles. Designed with attention to maximizing safety, the container offers optimal space for storing 3 large batteries with constant monitoring and thermal control.

In case of overheating and smoke presence, the detectors will activate the concentrated aerosol fire suppression system, which neutralizes the electrolyte decomposition process, preventing the formation of flammable gases and reducing the internal temperature. CTS-EV ensures safe storage of Li-Ion batteries and peace of mind thanks to a controlled and secure environment at all times.

What makes our CTS-EV box so safe?

• Fire resistance: safety container with open side and internal insulation REI 90;

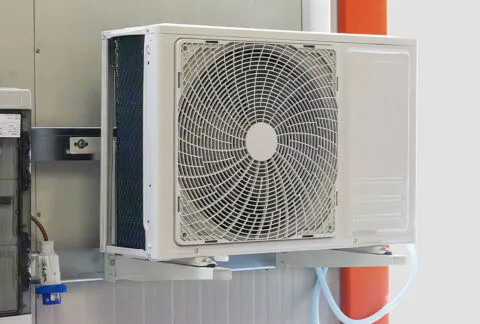

• Monitoring: air conditioning and humidity control system;

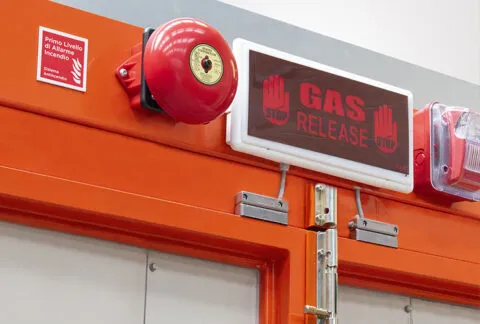

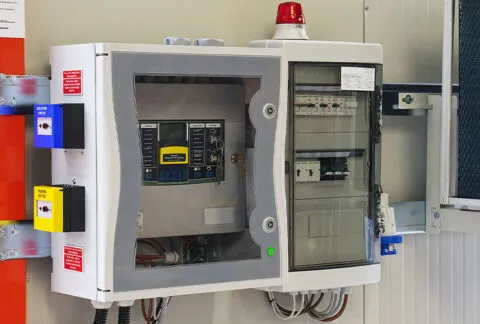

• Prevention: smoke and thermal detectors with rapid fire activation (30 sec.);

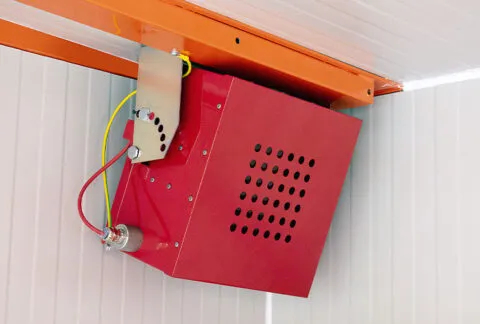

• Safety: concentrated aerosol fire suppression system (KIWA certified);
• Quick access: front opening for immediate access to the batteries when needed;

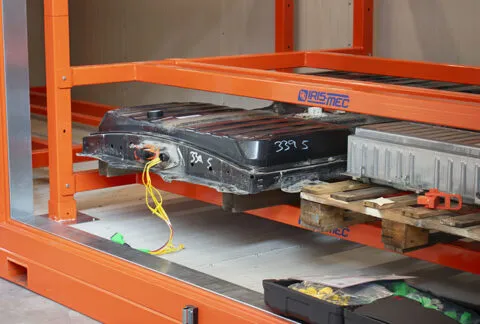

• Operational efficiency: orderly arrangement of 6 large batteries (2650 x 1650 x 340 mm) to facilitate monitoring and ensure stability during storage.

Technical Specs

CTS EV – 143N82100
External dimensions		3000 x 2190 x h. 2100 mm
Insulation		EI 90 internal (rock wool panels)Front opening, doors with fire-resistant seals
Stored batteries	max	Max 3 (total maximum weight 3500 kg)
Internal shelving		Steel structure with integrated grated shelves – Dimensions 2800 x 1740 x 2300
Battery size	max	2650 x 1650 x 340 mm
Floor		EI 90 mm fire resistant
Installations		Air conditioning system (T18-23 °C)
Extinguishing system		Certified KIWA Fireban aerosol

---
