IBC | Pneumatic drainage air system

code ibc-pneumatic-drainage-air-system

Details

Complete pneumatic depollution system with recovery and storage systems for fluids from ELV.

IBC is equipped with:

• Compact mobile lift PMC 30, with a maximum load capacity of 3000 Kg– 6613 Lbs;
• ISQ Fluids recovery system;
• Fuel tanks drill;
• BRL Adjustable arm for engine oil recovery;

Optional equipment on request:

• “Visual” Kit for visual inspection of fuel levels.
• AdBlue Kit: Liquid suction equipment.

Technical Specs

IBC / IBC EC
Engine oil drainage	50 l/min - 11 UK gal/min Air pump
Shock absorber oil	50 l/min - 11 UK gal/min Air pump
Brakes oil	50 l/min - 11 UK gal/min Air pump
Gear box oil drainage	50 l/min - 11 UK gal/min Air pump
Radiator’s water	50 l/min - 11 UK gal/min Air pump
Windscreen-wiper water	50 l/min - 11 UK gal/min Air pump
Gearbox oil	50 l/min - 11 UK gal/min Air pump
Differential gear oil	50 l/min - 11 UK gal/min Air pump
Petrol	50 l/min - 11 UK gal/min Air pump
Gasoil	50 l/min - 11 UK gal/min Air pump
N° cycle-hour	5/8
Max working pressure	6 Bar
Max flow	50 l/min - 11 UK gal/min
Pneumatic console
Puncher Beta air drill 500 w
Max load	3000 Kg - 6613Lbs
Weight	1400 kg - 3086Lbs
Overall dimensions	2400 x 2100 mm h 3300 mm - 94 x 82 in h 129 in

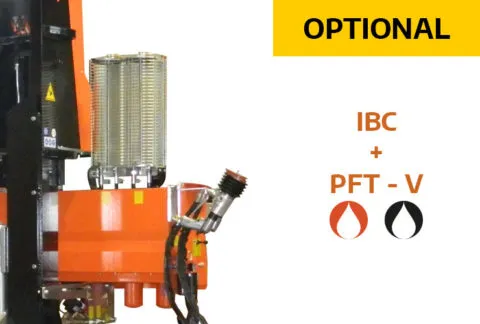

IBC /IBC EC Optionals
Visual Puncher

---
