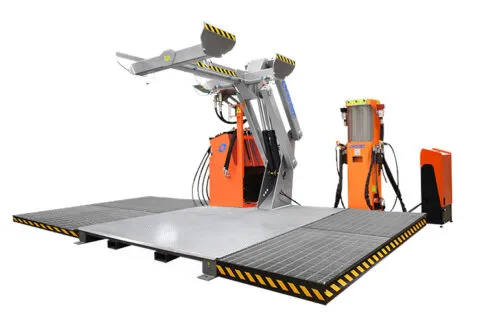

IBE | Pneumatic drainage air system

code ibe-pneumatic-drainage-air-system

Details

Complete depollution system with fluids recovery and storage systems.

IBE is equipped with:

• Mobile lift PM 35 with a maximum load capacity of 3500 kg – 7716 Lbs;
• Fluids suction system, New ISE – New ISK;
• PFT petrol and diesel puncher;
• BRL adjustable arm for engine oils recovery;

Optional equipment on request:

• “Visual“ Kit for visual inspection of fuel levels.
• AdBlue Kit: Liquid suction system, only for station with NEW ISK recovery system.

Technical Specs

IBE
Brakes oil	50 l/min - 10 Uk gal/min Air pump
Engine oil drainage	50 l/min - 10 Uk gal/min Air pump
Gear box oil drainage	50 l/min - 10 Uk gal/min Air pump
Windscreen-wiper water	50 l/min - 10 Uk gal/min Air pump
Radiator’s water	50 l/min - 10 Uk gal/min Air pump
Petrol	50 l/min - 10 Uk gal/min Air pump
Gasoil	50 l/min - 10 Uk gal/min Air pump
Pneumatic console
External tanks driven by a processor
N° cycle/hour	6/10
Max flow ISE NEW	50 l/min - 10 Uk gal/min
Max working pressure ISE NEW	6 Bar
Puncher Beta air drill 500 W
Engine	3kW 400V 3 ~
Max working pressure PM32	175 bar
Max flow PM32	11.7 l/min - 2,5 UK gal/min
Up slope time	28 sec
Down slope time	12 sec
Overall dimensions	5100 x 3300 mm h. 2400 mm 201 x 130 in h. 95 in
Weight	2400 kg - 5292 Lbs

---
