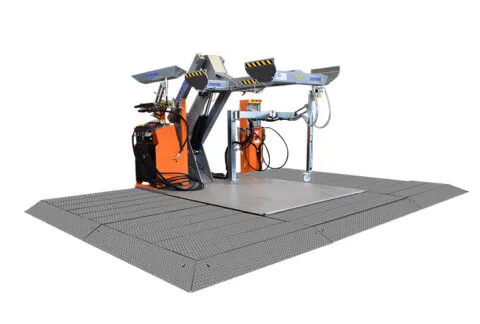

IBE VS | Depollution station with PFT-Strong and Visual
Complete depollution system with recovery systems of fluids, "PFT-Strong" puncher and monitoring quality kit "Visual" from ELV.
code ibe-vs-depollution-station-with-pft-strong-and-visual
Details
Complete depollution system with with Fuel tanks drill with remote controls and Kit for visual inspection of fuel levels.
IBE VS is equipped with:
- Mobile lift PM 35, with a maximum load capacity of 3500 kg – 7716 Lbs;
- Fluids suction system, New ISE – New ISK,
- PFT-Strong: Fuel tanks drill with remote control;
- BRL: adjustable arm for engine oils recovery.
- “Visual” Kit for visual inspection of fuel levels.
Optional equipment on request:
- AdBlue Kit: Liquid suction equipment, only for station with NEW ISK recovery system.
Technical Specs
| IBE | |
|---|---|
| Brakes oil | 50 l/min - 10 Uk gal/min Air pump |
| Engine oil drainage | 50 l/min - 10 Uk gal/min Air pump |
| Gear box oil drainage | 50 l/min - 10 Uk gal/min Air pump |
| Windscreen-wiper water | 50 l/min - 10 Uk gal/min Air pump |
| Radiator’s water | 50 l/min - 10 Uk gal/min Air pump |
| Petrol | 50 l/min - 10 Uk gal/min Air pump |
| Gasoil | 50 l/min - 10 Uk gal/min Air pump |
| Pneumatic console | |
| External tanks driven by a processor | |
| N° cycle/hour | 6/10 |
| Max flow ISE NEW | 50 l/min - 10 Uk gal/min |
| Max working pressure ISE NEW | 6 Bar |
| Puncher Beta air drill 500 W | |
| Engine | 3kW 400V 3 ~ |
| Max working pressure PM32 | 175 bar |
| Max flow PM32 | 11.7 l/min - 2,5 UK gal/min |
| Up slope time | 28 sec |
| Down slope time | 12 sec |
| Overall dimensions | 5100 x 3300 mm h. 2400 mm 201 x 130 in h. 95 in |
| Weight | 2400 kg - 5292 Lbs |
