IBP | Depollution unit with fluids weighing system

code ibp-depollution-unit-with-fluids-weighing-system

Details

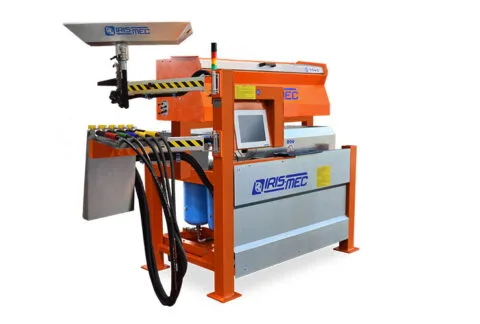

Depollution station complete with all the equipment for fluids, oils and fuel recovery, is able to weigh the liquids sucked out during the depollution operations for the car at the end of the life (ELV). During the suction phase, the liquids are extracted and pre-stored in tanks equipped with load cells connected to a software that detects the quantity of liquids taken for each vehicle.

Thanks to the weighing system ,it will be easier and safer to trace the quantity of fluids that will be stored.

Optional equipment on request:

• PFT V: Fuel tanks drill with remote control and Visual;
• PFT Strong:Fuel tanks drill with remote control;
• Ad Blue suction kit;

Technical Specs

IBP
Gearbox oil	50 l/min - 11 UK gal/min Air pump
Hydraulic oil	50 l/min - 11 UK gal/min Air pump
Brakes oil	50 l/min - 11 UK gal/min Air pump
Oil drainage	50 l/min - 11 UK gal/min Air pump
Windscreen-wiper water	50 l/min - 11 UK gal/min Air pump
Radiator’s water	50 l/min - 11 UK gal/min Air pump
N° cycle-hour	5/8
Pressure	6 Bar
Max flow	50 l/min - 11 UK gal/min
Pneumatic console
Capacity	2 x 90lt / 3 x 50lt / 1 x 20lt - 2 x 20 UK gal / 3 x 11 UK gal / 1 x 5 UK gal
Weight	1250 Kg - 2756 Lbs
Overall dimensions	2200 x 1200 mm h. 3900 mm - 87 x 48 in h. 154 In

IBP Optionals
PFT/PFT MONO/PFT-V Puncher
PFT-Strong Puncher

---
