ISC | Mobile drainage system with container

code isc-mobile-drainage-system-with-container

Details

ISC is an mobile depollution station for ELV, positioned inside a carriage container.

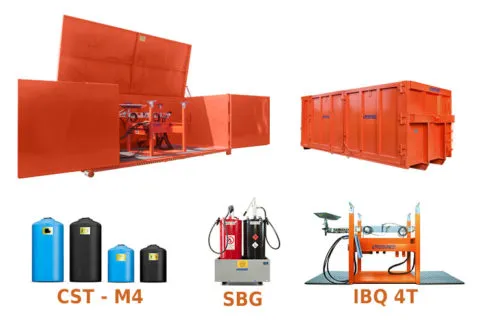

It’s composed by for the basic devices for depollution work flow. The equipment includes:

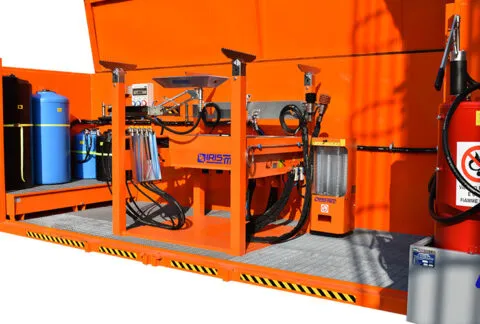

• IBQ-4t – Compact depollution station with fixed bridge.
• SBG – Fuel storage kit.

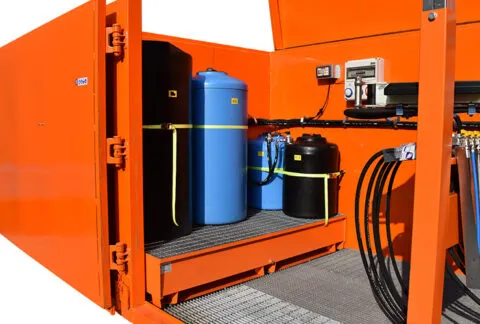

• KSL 4 – Liquid and oil storage kit with sound and visual monitoring system.

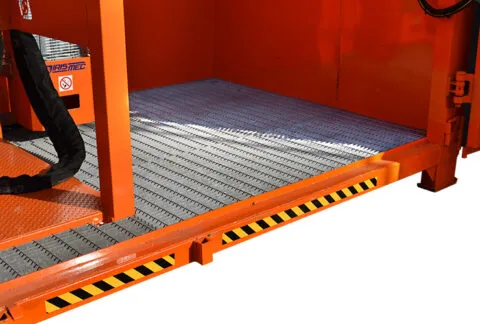

• CTN – Roll on-off body with two side doors, internal fixed ramp complete with anti-slip grids and a base for liquid containment.

The overall dimensions are 6650 x 2450 mm h 2150 mm – 261 x 96 in h.85 in.

Technical Specs

ISC
CNT
Weight	25q - 5512 Lbs
Overall dimensions	650 x 245 mm h 215 mm - 26 x 10 in h. 9 in
IBQ-4t
Brakes oil	50 l/min - 11 UK gal/min Air pump
Engine oil drainage	50 l/min - 11 UK gal/min Air pump
Gearbox oil	50 l/min - 11 UK gal/min Air pump
Differential gear oil	50 l/min - 11 UK gal/min Air pump
Gear box oil drainage	50 l/min - 11 UK gal/min Air pump
Windscreen-wiper water	50 l/min - 11 UK gal/min Air pump
Radiator’s water	50 l/min - 11 UK gal/min Air pump
Shock absorber oil	50 l/min - 11 UK gal/min Air pump
Petrol	50 l/min - 11 UK gal/min Air pump
Gasoil	50 l/min - 11 UK gal/min Air pump
Puncher Beta air drill 500 w
N° cycle-hour	5/8
Max working pressure	6 Bar
Max flow	50 l/min - 11 UK gal/min
Pneumatic console
Max load	4000 Kg - 8818 Lbs
Weight	280 kg - 618 Lbs
Overall dimensions	1500 x 1600 x h 1800 mm - 60 x 63 h 71 in
SBG
Petrol storage	250 l - 55 UK gal
Gasoil storage	250 l - 55 UK gal
Capacity	249 + 249 Lt - 55 + 55 Uk gal
Overall dimensions	600 x 1000 mm h. 1800 mm - 24 x 40 in h. 71 in
Weight	140 Kg - 310 Lbs

Standard quipment

Adjustable suction pressure

Optionals

• Hydraulic roof;
• Diesel Motor compressor 11 HP with 2 kw generator – 270 lt,

---
