PRT | Tilting / elevator lift
Tilting and elevator lift for a full and safe dismantling of End life Vehicles.
code prt-tilting-elevator-lift
Details

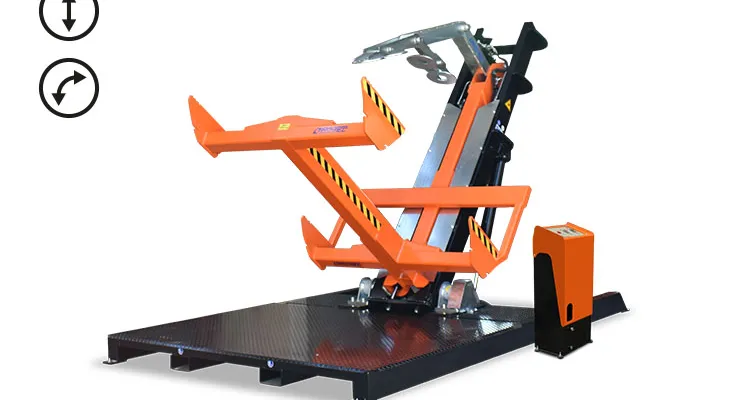

PRT Tilting / elevator lift, allows full and safe dismantling of heavy and valuable mechanical parts from vehicles.
It avoids the hazardous situation of working underneath the vehicle, and allowing the operator to work in an upright and comfortable position.
Provided with automatic hydraulic locking device to hold vehicles safely in position whilst work is undertaken.
Technical Specs
| PRT | |
|---|---|
| Tilting angle | 90° |
| Maximum working pressure of lifting hydraulic circuit | 200 bar - 2900.7psi |
| Tilting forward time | 32 sec |
| Tilting return time | 36 sec |
| Lift hydraulic circuit maximum pressure | 200 bar - 2900psi |
| Lift ascent time | 18 s |
| Lift descent time | 13 s |
| Support brackets interaxis | 1230 x 1600 mm - 48.4 x 63 in |
| Maximum capacity | 3200 Kg - 6614 Lbs |
| ‘A’ Weighted sound pressure level (LPA) | 45 db |
| Electrical power requirements | 3 Kw - 4 hp |
| Voltage (V-three-phase) | 400 / 50-60 Hz |
| Rated current | 6,5 A |
| Electrical connection EC 60309 3P Plug +T 16A red with 394” cable 3P+T 0.004 in2 | |
| Tilting Rig dimensions | 3235 x 1920 x 2840 mm - 127.4 x75.6 in h.112in |
| Control box dimensions | 670 x 480 mm h. 970 mm - 26.4 x 18.9 in h. 38 in |
| Weight | 1685 Kg - 3472 Lbs |
https://www.iris-mec.com/download/13683/https://www.youtube.com/embed/M74yT5VKmJw
