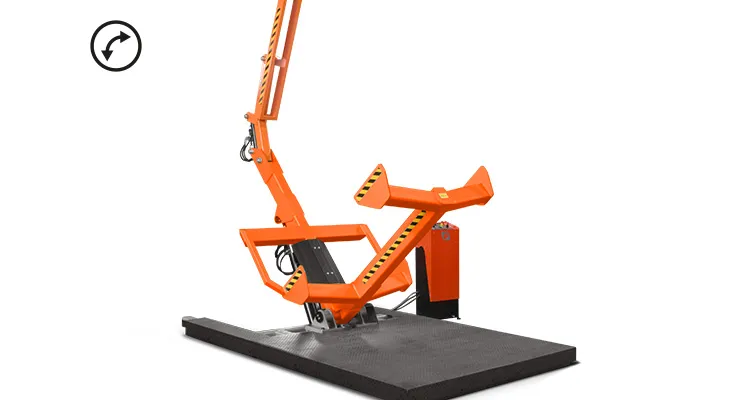

The Revolving RBT Rig, allows full and safe dismantling of heavy and valuable mechanical parts from vehicles. It avoids the hazardous situation of working underneath the vehicle, and allowing the operator to work in an upright and comfortable position. Provided with automatic hydraulic locking device to hold vehicles safely in position whilst work is undertaken.

Technical Specs

RBT 32
Tilting angle	90°
Maximum working pressure of lifting hydraulic circuit	200 bar - 2900.7psi
Tilting forward time	32 sec
Tilting return time	36 sec
Support brackets interaxis	1230 x 1600 mm - 48.4 x 63 in
Maximum capacity	3200 Kg - 6614 Lbs
‘A’ Weighted sound pressure level (LPA)	45 db
Electrical power requirements	3 Kw - 4 hp
Voltage (V-three-phase)	400 / 50-60 Hz
Rated current	6,5 A
Electrical connection EC 60309 3P Plug +T 16A red with 394” cable 3P+T 0.004 in2
Tilting Rig dimensions	3235 x 1920 x 2840 mm - 127.4 x75.6 in h.112in
Control box dimensions	670 x 480 mm h. 970 mm - 26.4 x 18.9 in h. 38 in
Weight	1130 Kg - 2491 Lbs

---
