IBQ 4T| Only 4 cubic metres of space

code ibq-4t-compact-drainage-system

Details

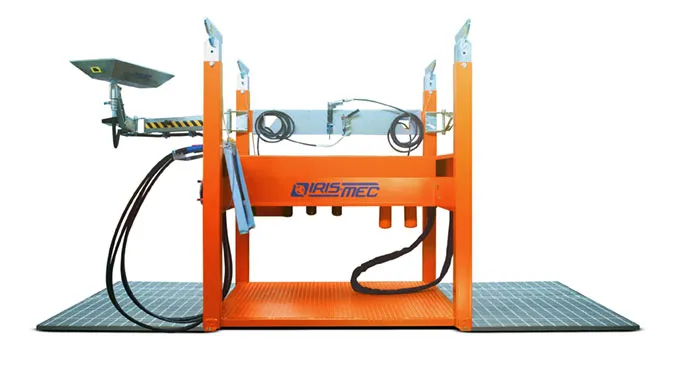

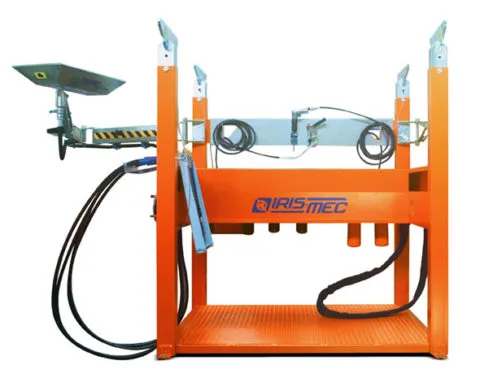

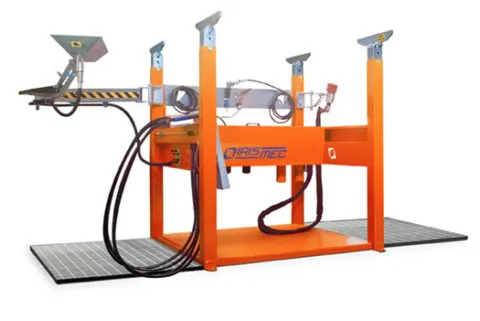

Complete depollution system with a work area of 4m³- 142 ft³. Designed to recover fluids, oils and fuels from End-Life-Vehicles.

Its equipment includes:

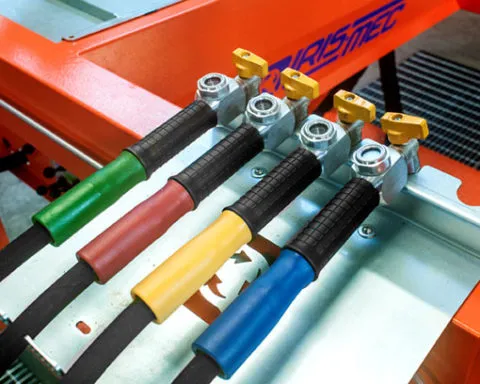

• ISQ: Fluid recovery system;

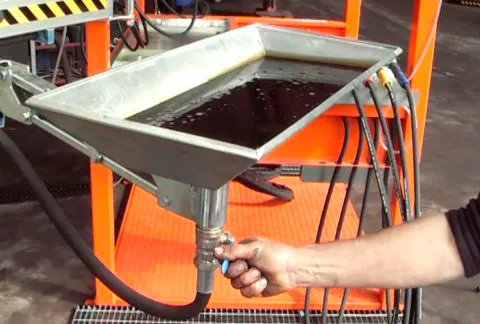

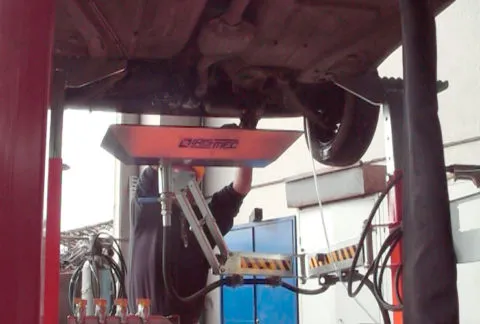

• BRL: Oil collection arm;
• PFA: Shock Absorber Perforator;

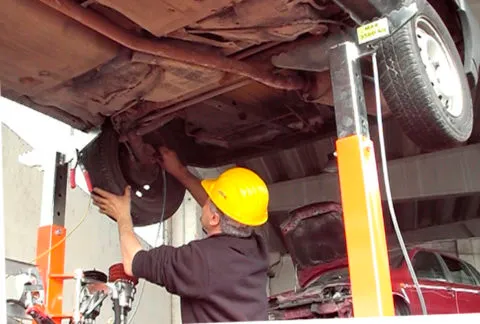

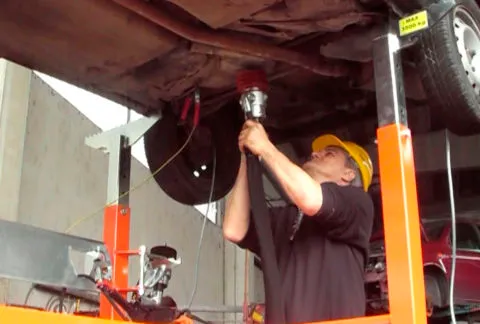

• Drills for fuel recovery;

Thanks to its small size, IBQ-4t can be installed in a minimum working area of 4m3 – 142 ft3

Optional equipment on request:

• IBQ-V: kit for fuels quality check;
• KPL: Liquid weighing kit with “Industry 4.0” technology;

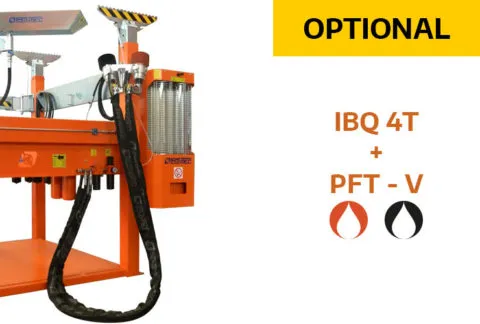

• PFT- Strong: Fuel tanks puncher with remote controls;
• AdBlue Kit: Liquid suction equipment;

Technical Specs

IBQ - 4t
Engine oil drainage	50 l/min - 11 UK gal/min Air pump
Shock absorber oil	50 l/min - 11 UK gal/min Air pump
Brakes oil	50 l/min - 11 UK gal/min Air pump
Gear box oil drainage	50 l/min - 11 UK gal/min Air pump
Radiator’s water	50 l/min - 11 UK gal/min Air pump
Windscreen-wiper water	50 l/min - 11 UK gal/min Air pump
Gearbox oil	50 l/min - 11 UK gal/min Air pump
Differential gear oil	50 l/min - 11 UK gal/min Air pump
Petrol	50 l/min - 11 UK gal/min Air pump
Gasoil	50 l/min - 11 UK gal/min Air pump
N° cycle-hour	5 / 8
Max working pressure	6 Bar
Max flow	50 l/min - 11 UK gal/min
Pneumatic console
Puncher Beta air drill 500 w
Max load	4000 Kg - 8818 Lbs
Weight	280 kg - 618 Lbs
Overall dimensions	1500 x 1600 mm h. 1800 mm - 60 x 63 in h. 71 in

IBQ 4t Optionals
Visual Puncher IBQ-V

---
